UKSOL Sheffield Pro Compact Ground Mount – 460W Plug-In Solar Kit
£594.30
Taxes included.
Shipping calculated at checkout.
Please note: Initial orders placed before October may take approximately 3 weeks to arrive.
Looking to order 10 units or more?
Visit our ISUK trade website for larger quantity and trade orders.

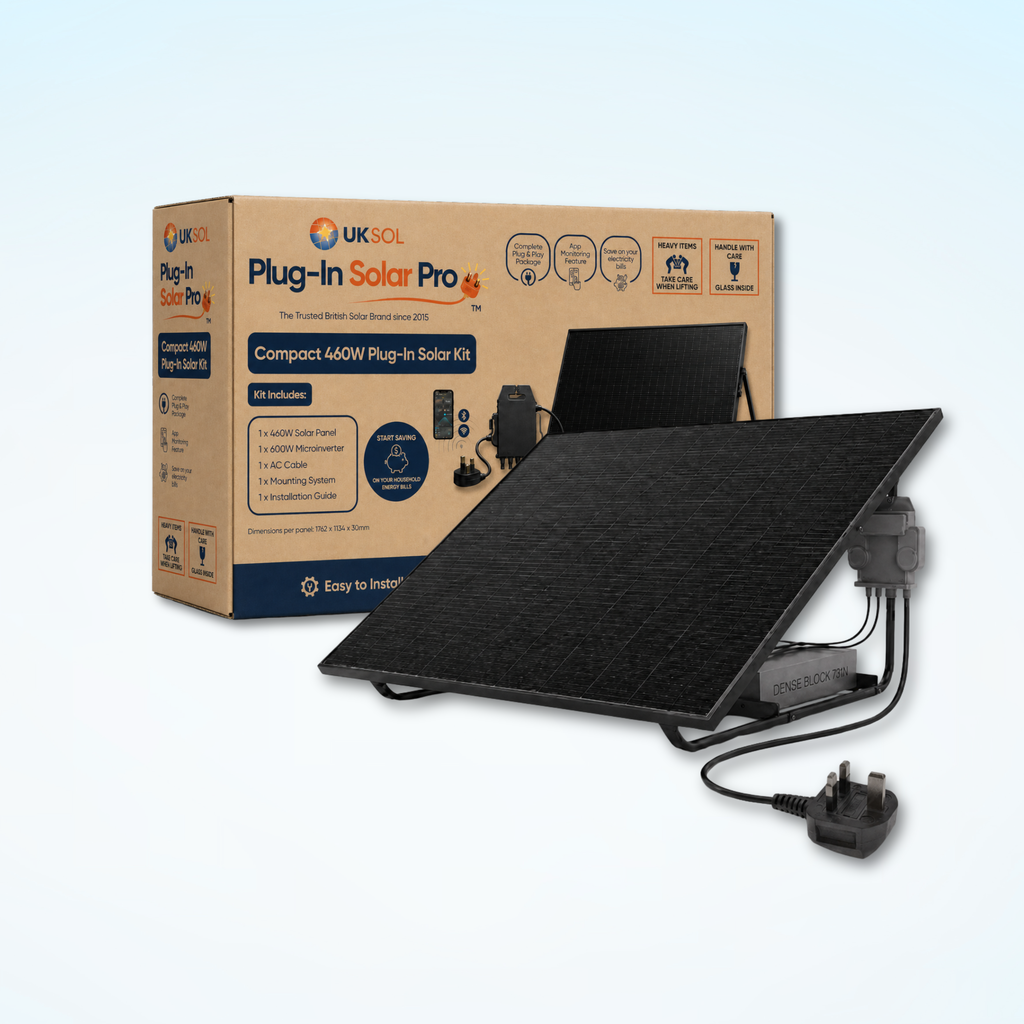

View Trade OrdersThe Sheffield Pro Compact Ground Mount is a complete 460W plug-in solar package designed to make generating your own clean electricity simple and convenient.
Featuring a high-efficiency 460W all-black TOPCon N-Type bifacial solar panel, an 800W smart microinverter and a Sheffield-made ground mounting frame, the system provides a compact solution for suitable outdoor spaces.
Simply position the panel in a suitable south-facing, unshaded location, connect the system in accordance with the supplied installation instructions, and monitor solar generation from your smartphone.
What’s Included
- 1 × 460W high-efficiency all-black solar panel
- 1 × 800W smart microinverter
- Sheffield ground mounting frame
- Wi-Fi & Bluetooth monitoring capability
- Plug-in connection equipment
- Warranty and Certification document
Key Features
- 460W TOPCon N-Type monocrystalline solar panel
- 23.0% module efficiency
- Bifacial glass-glass module
- 800W smart microinverter
- 2 independent MPPTs
- Built-in Wi-Fi & Bluetooth
- Smartphone performance monitoring
- IP67-rated microinverter
- Battery storage compatible
- Anti-islanding protection
- 10-year British panel warranty
- Ground-mount design
- Kit assembled in Great Britain
Panel Specifications
Maximum Power: 460W
Module Efficiency: 23.0%
Cell Type: TOPCon N-Type Monocrystalline Silicon
Cell Configuration: 96 cells
Dimensions: 1762 × 1134 × 30mm
Weight: 25.5kg
Frame: 30mm anodized aluminium alloy
Junction Box: IP68 rated
Maximum System Voltage: 1500V DC
Maximum Fuse Rating: 35A
Bifaciality: Up to 80%

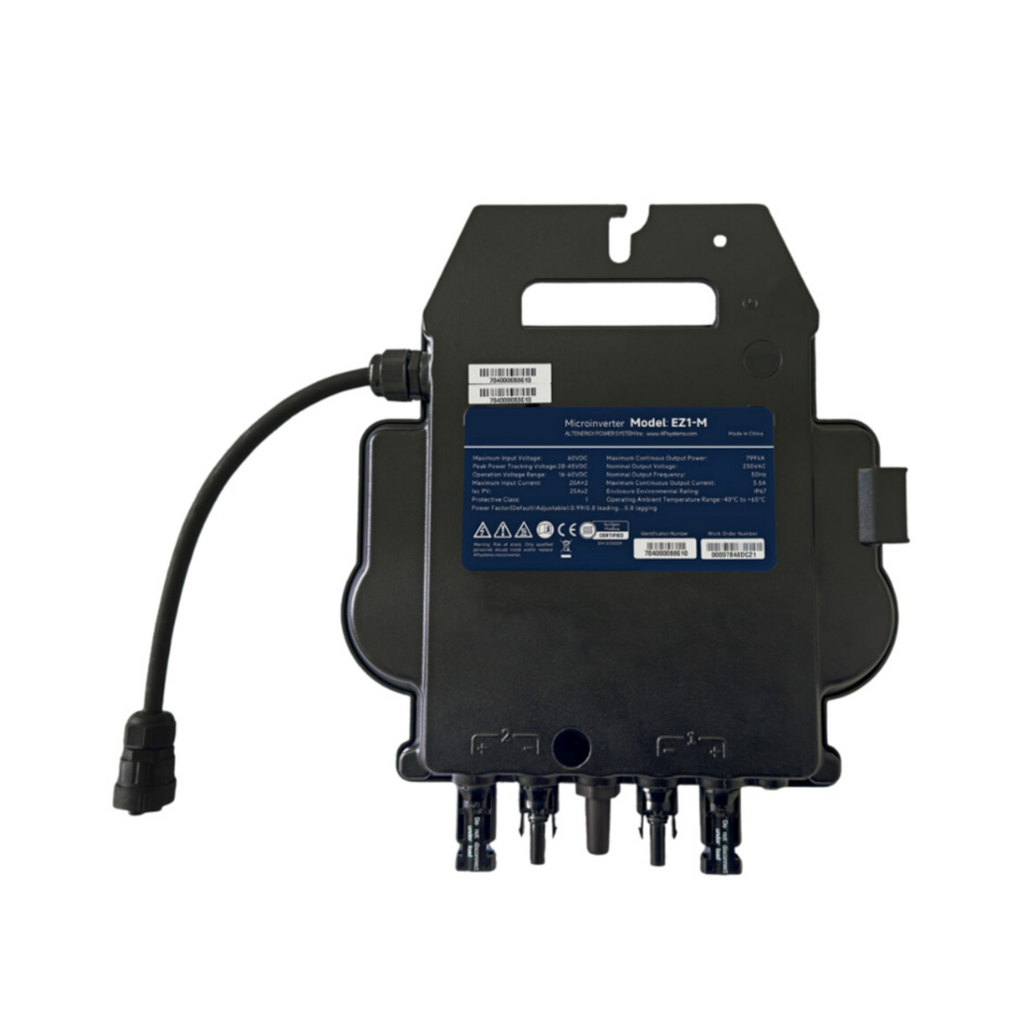

Microinverter Specifications
Microinverter: 800W Smart Microinverter
Maximum Continuous Output: 799VA
MPPT Channels: 2 independent MPPTs
Recommended Module Range: 300W–730W
Peak Efficiency: 96.7%
Communication: Built-in Wi-Fi & Bluetooth
Protection Rating: IP67
AC Output Voltage: 230V
AC Output Frequency: 50Hz
Maximum Output Current: 3.5A
Monitoring: Smartphone monitoring app
Warranty: 10-year British warranty
Click here for technical datasheet
Not suitable for use on balconies. Installation must follow the supplied instructions and applicable electrical regulations.
